RpcProxy Class Reference

Processes KDRPC protocol version A KDRPC data packets received from KDCLIENT.DLL. More...

Collaboration diagram for RpcProxy:

[legend]

List of all members.

Public Member Functions
	RpcProxy ()
	~RpcProxy ()
void	MainLoop ()
Private Types
enum	{ TEMP_BUF_SIZE = 262144 }
Private Attributes
PipeServer< true, false >	m_Server
KdRpcDispatcher	m_Client
char *	m_pBuf1

---

Detailed Description

Processes KDRPC protocol version A KDRPC data packets received from KDCLIENT.DLL.

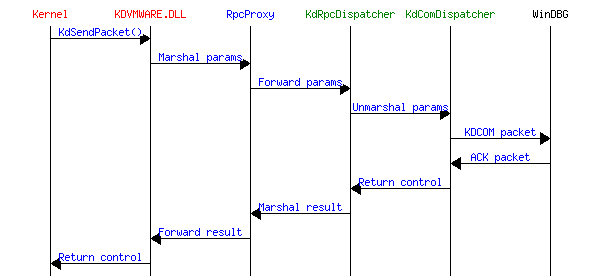

The RpcProxy class implements a Named Pipe Proxy functionality to simplify debugging. A typical call sequence with RpcProxy enabled is the following:

The color of the entries specifies whether they execute in kernel mode on guest (red), in the address space of VMWARE-VMX.EXE (blue), or as a separate process started by Visual Studio(green).

---

Member Enumeration Documentation

anonymous enum [private]

Enumerator:

TEMP_BUF_SIZE

---

Constructor & Destructor Documentation

RpcProxy::RpcProxy

(

)

[inline]

Here is the call graph for this function:

RpcProxy::~RpcProxy

(

)

[inline]

---

Member Function Documentation

void RpcProxy::MainLoop

(

)

[inline]

Here is the call graph for this function:

---

Member Data Documentation

KdRpcDispatcher RpcProxy::m_Client [private]

char* RpcProxy::m_pBuf1 [private]

PipeServer<true, false> RpcProxy::m_Server [private]

---

The documentation for this class was generated from the following file:

• pipeproxy/pipeproxy.cpp
